The complement system was discovered in the late 19th century as a heat-labile plasma component that " complemented" antibodies in killing microbes, hence the name "complement". The complement system is also part of the innate immune system and plays an important role in phagocytosis of xenobiotics, removal of immune complexes and apoptotic cells, and participation in acquired immunity. In contrast, abnormalities of the complement system are closely associated with a variety of diseases such as infections, autoimmune system diseases, and tumors, etc.
Complement activation can be done through three pathways: classical, lectin and alternative.
1. Membrane attack – by rupturing the cell wall of bacteria. (Classical Complement Pathway)
2. Phagocytosis – by opsonizing antigens. C3b has the most important opsonizing activity. (Alternative Complement Pathway)
3. Inflammation – by attracting macrophages and neutrophils. (Lectin pathway)
Figure 1. Targets for inhibition in the complement pathway.
Despite a long list of diseases with the potential to improve complement modulation, only a few rare diseases have been approved for clinical treatment targeting complement. Diseases currently being effectively treated include paroxysmal nocturnal hemoglobinuria, atypical hemolytic uremic syndrome, myasthenia gravis, and neuroretinitis optica spectrum disorders.
FDA Approved Complement Inhibitors
Now, there are nine complement inhibitors are approved by FDA, including C1 inhibitor Berinert, Cinryze, Ruconest and Enjaymo (sutimlimab), C3 inhibitor Empaveli (pegcetacoplan), SYFOVRE™ (pegcetacoplan injection) , and C5 inhibitor Soliris (Eculizumab), Ultomiris (ravulizumab) and Tavneos (avacopan).
FDA Approved Complement Inhibitors | ||||||
---|---|---|---|---|---|---|
Drug name | Trade Name | Company | Aproval Date | Target | Modality | Indication |
CLASSICAL PATHWAY | ||||||
Cinryze | —— | Takeda Pharmaceuticals | October 2008 | C1r/s; MASPs | Purified native protein | Routine prophylaxis against angioedema attacks in adults, adolescents, and pediatric patients (6 years old and above) with Hereditary Angioedema (HAE). |
Berinert | —— | CSL Behring | October 2009 | C1r/s; MASPs | Purified native protein | Acute abdominal, facial, or laryngeal hereditary angioedema (HAE) attacks |
Ruconest | —— | Pharming | July 2014 | C1r/s; MASPs | Biologic | Acute attacks in adult and adolescent patients with hereditary angioedema (HAE) |
Sutimlimab | Enjaymo | Sanofi | February 2022 | C1s | Ab | Decrease the need for red blood cell (RBC) transfusion due to hemolysis in adults with cold agglutinin disease (CAD) |
ALTERNATIVE PATHWAY/AMPLIFICATION LOOP/COMPLEMENT C3 | ||||||
Pegcetacoplan | Empaveli | Apellis | May 2021 | C3 | Peptide | Paroxysmal nocturnal hemoglobinuria (PNH) |
Pegcetacoplan injection | Syfovre | Apellis | Feb 2023 | C3 | Peptide | Geographic Atrophy |
COMPLEMENT C5 | ||||||
Eculizumab | Soliris | Alexion | May 2007 | C5 | Ab | Paroxysmal Nocturnal Hemoglobinuria (PNH), atypical Hemolytic Uremic Syndrome (aHUS), myasthenia gravis (gMG) and neuromyelitis optica spectrum disorder (NMOSD) |
Ravulizumab | Ultomiris | Alexion | December, 2018 | C5 | Ab (recycling) | Paroxysmal Nocturnal Hemoglobinuria (PNH), atypical Hemolytic Uremic Syndrome (aHUS) |
COMPLEMENT C5a/C5aR1 | ||||||
Avacopan | Tavneos | Chemocentryx | October 2021 | C5aR1 | SM | Adjunctive treatment of adult patients with severe active anti-neutrophil cytoplasmic autoantibody (ANCA)-associated vasculitis in combination with standard therapy including glucocorticoids |
Figure 2. FDA Approved Complement Inhibitors
Soliris (Eculizumab), approved in 2007 by FDA, is the world's first approved C5 inhibitor, administered weekly or every 2 weeks. For the treatment of patients with paroxysmal nocturnal hemoglobinuria (PNH), atypical hemolytic uremic syndrome (aHUS), generalized Myasthenia Gravis (gMG) who are anti-acetylcholine receptor (AchR) antibody positive, and neuromyelitis optica spectrum disorder (NMOSD) who are anti-aquaporin-4 (AQP4) antibody positive.
Ultomiris (ravulizumab), approved in 2018 by FDA, is an improved version of the existing blockbuster drug, Soliris. It is the first and only long-acting C5 inhibitor administered every 8 weeks in adults. Which is indicated for the treatment of adult patients with paroxysmal nocturnal hemoglobinuria (PNH) and the treatment of adults and pediatric patients 1 month of age and older with atypical hemolytic uremic syndrome (aHUS).
According to Alexion's historical financial reports, sales of Soliris have climbed each year since it was approved in 2007, reaching $4.064 billion in 2020. Sales of Ultomiris exceeded $1 billion in its second year on the market, and EvaluatePharma predicts that its sales will reach $3.43 billion in 2024. It is worth mentioning that AstraZeneca acquired Alexion in December 2020 for $39 billion, given its position in the field of complement system-mediated rare disease drugs.
Figure 3. Soliris and Ultomiris, source: https://onlinelibrary.wiley.com/doi/full/10.1111/jcpt.13642
In May 2021, the FDA approved Empaveli (pegcetacoplan), the world's first targeted C3 therapy for the treatment of Paroxysmal nocturnal hemoglobinuria (PNH). pegcetacoplan is a synthetic cyclic peptide conjugated to a polyethylene glycol (PEG) polymer that specifically binds C3 and C3b. On 17 Feb, 2023, the FDA has approved SYFOVRE™ (pegcetacoplan injection) for the treatment of geographic atrophy (GA) secondary to age-related macular degeneration (AMD). SYFOVRE is the first and only FDA-approved treatment for GA,
The approval of Empaveli was based on a head-to-head phase III PEGASUS study, which showed that Empaveli outperformed Soliris for the change from baseline in hemoglobin level. Apellis is currently evaluating the efficacy and safety of pegcetacoplan in the treatment of patients with PNH, geographic atrophy (GA) and C3 glomerulopathy in several clinical studies.

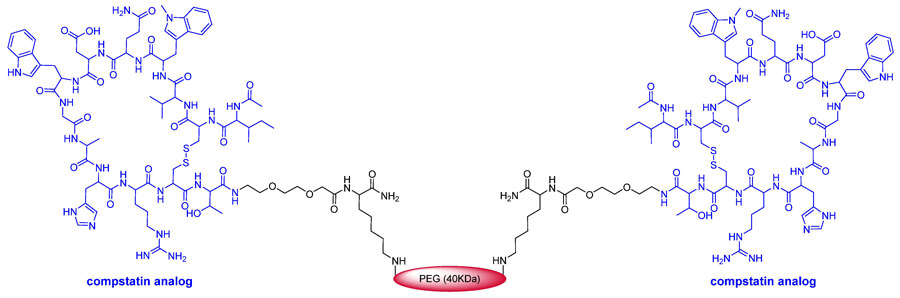

Pegcetacoplan is a highly pegylated peptide with a chemical structure that resembles that of peginesatide. Thus, both molecules contain two copies of a disulfide cyclic peptide (13 aa for pegcetacoplan and 20 aa for peginesatide) and 40 kDa PEG (two units of 20 kDa for peginesatide).
Figure 3. Structure of pegcetacoplan. source: https://www.mdpi.com/1420-3049/27/3/1075/htm
In Oct 2021, the FDA has approved avacopan (TAVNEOS), an orally administered selective complement C5a receptor inhibitor, as an adjunctive treatment of adult patients with severe active anti-neutrophil cytoplasmic autoantibody-associated vasculitis (ANCA-associated vasculitis), specifical granulomatosis with polyangiitis (GPA) and microscopic polyangiitis (MPA) (the two main forms of ANCA vasculitis), in combination with standard therapy.
On February 4, 2022, FDA approved Enjaymo™ (sutimlimab-jome) to decrease the need for red blood cell transfusion due to hemolysis in adults with cold agglutinin disease (CAD). Enjaymo is designed to selectively target and inhibit C1s in the classical complement pathway, which is part of the innate immune system. By blocking C1s, Enjaymo inhibits the activation of the complement cascade in the immune system and inhibits C1-activated hemolysis in CAD to prevent the abnormal destruction of healthy red blood cells.
Complement Inhibitors Under Investigated
In addition to the eight complement inhibitors approved above, there are several other drugs currently under investigated, such as iptacopan (Novartis), nomacopan (Akari), danicopan (Achillion), ANX005 (Annexon), Zimura (Iveric Bio) and zilucoplan (UCB), etc. Among these drugs, zimura and zilucoplan are PEGylated complement inhibitors.
Figure 5. Complement Inhibitors Under Investigated
Zilucoplan (RA 101495) is a self-administered, subcutaneous (SC) peptide inhibitor of complement component 5 (C5 inhibitor) for use in the treatment of generalized myasthenia gravis and paroxysmal nocturnal hemoglobinuria. Data from the Phase 3 RAISE trial (NCT04115293) (poster 26)1 demonstrated treatment with zilucoplan (0.3 mg/kg daily) resulted in clinically meaningful and statistically significant improvements in key gMG-specific outcomes compared with placebo in patients with acetylcholine receptor autoantibody positive (AChR+) gMG.
Zimura (avacincaptad pegol) is designed to target and inhibit the cleavage of complement protein C5 and the formation of its downstream fragments, C5a and C5b. It is currently in the Phase 3 clinical trials for geographic atrophy. Iveric Bio previously announced that GATHER1 showed Zimura met its pre-specified primary efficacy endpoint with statistical significance in the Phase 3 clinical trial. And, topline data for GATHER2, a second Phase 3 clinical trial for Zimura for GA, will be available in the second half of 2022.
Iptacopan (LNP023) is a first-in-class, orally administered, potent and highly selective factor B inhibitor of the alternative complement pathway. In December 2020, it has been granted Breakthrough Therapy Designation (BTD) in paroxysmal nocturnal hemoglobinuria (PNH) and Rare Pediatric Disease (RPD) Designation in C3 glomerulopathy (C3G) by FDA. It is currently in the Phase 2 clinical trials.
Nomacopan is a recombinant small protein (16740 Da), highly soluble and stable, that acts on complement C5, preventing the release of C5a and the formation of c5b-9, and also specifically inhibits leukotriene B4 (LTB4), both important components of the human immune/inflammatory response.
Nomacopan is in clinical development for the treatment of PNH, herpetic aspergillosis, atopic keratoconjunctivitis, and thrombotic microangiopathy. In January 2020, positive results were obtained from the phase III CAPSTONE study of nomacopan for the treatment of PNH.
Danicopan regulates the bypass pathway of complement by potent and highly specific targeting of complement factor D, blocking the production of C3 convertase. Moreover, danicopan prevents the deposition of C3b fragments on patients' RBCs, controls erythrocyte catabolism, and extravascular hemolysis in PNH patients, thereby improving patient outcomes. In September 2019, the drug was granted orphan drug designation by the FDA in combination with C5 complement inhibitors for the treatment of PNH patients who do not respond well to C5 inhibitor therapy.
ANX005 is a clinical-stage investigational monoclonal antibody that potently inhibits C1q, the initiator molecule of the classical complement cascade reaction, thereby blocking the activation of the entire classical pathway, including downstream C3 and C5, while preserving the protective function of other complement pathways (lectin and alternative pathways). ANX005 is currently being developed for the treatment of autoimmune and neurodegenerative diseases. In September 2019, the drug was granted Fast Track Designation by the FDA for the treatment of Guillain-Barre Syndrome (GBS).
Conclusion
The development of drugs targeting the complement system is gaining momentum. However, there are still many difficulties in the development of these drugs.
On the one hand, although the role of complement in the human body is widely recognized, how it mediates disease and how it affects pathogenesis is unknown. On the other hand, the complement system is a complex network of proteins with a large number of pathways that play regulatory roles. Even if one of the complement pathways is blocked, the complement system can "redirect" to another pathway through regulatory mechanisms, protecting the body from pathogens, but also eliminating the expected clinical effect of target inhibitors. Therefore, the development of drugs that effectively block the complement pathway has become a major challenge, including the selection of indications, the screening of complement system targets, and the selection of drug types (e.g., monoclonal antibodies, small molecules, peptides, etc.).
In addition, complement proteins are widely present in the body, accounting for about 10% of total serum proteins, and are metabolized at a very fast rate. Once the complement protein is activated in the body, it will need to be blocked with high frequency and high dose of drugs. Therefore, the frequency and dose of complement drugs have become a major consideration in drug development.
Biopharma PEG, as a leading PEG Linker supplier, provides monodispersed and polydispersed PEGs for your drugs developemnt, including complement inhibitors.
References:
[1] Wioleta M Zelek, Long Xie, B Paul Morgan, Claire L Harris,, Compendium of current complement therapeutics, Molecular Immunology, Volume 114, 2019, Pages 341-352, ISSN 0161-5890, https://doi.org/10.1016/j.molimm.2019.07.030.
[2] Morgan BP, Harris CL. Complement, a target for therapy in inflammatory and degenerative diseases. Nat Rev Drug Discov. 2015;14(12):857-877. doi:10.1038/nrd4657
